How to Know if My Motherboard Is Bad: 10 Signs & Tests

Your PC is dead. The fans spin, the lights flicker, but the screen stays black. In that moment, panic sets in. You start doing the mental math: a new motherboard, maybe a new CPU, perhaps a whole new build. It’s a frightening thought, and you’re wondering, how to know if my motherboard is bad before you spend hundreds of dollars on a part that might not even be the culprit.

I’ve spent the last 15 years troubleshooting hardware for everything from home gamers to enterprise servers. I can tell you from experience: a non-booting system is rarely the motherboard’s fault right out of the gate. Most of the time, it’s bad RAM, a failing power supply, or a simple configuration error. But when the board itself begins to die, the signs are often subtle at first, turning into chaotic symptoms later.

This guide isn’t just a list of "things that might be wrong." It’s a methodical exclusion process. We will move from simple visual checks to advanced multimeter tests, helping you distinguish between a dying board and a faulty component. By identifying motherboard failure signs early, you might save your rig—or at least save the money you’d have wasted buying the wrong replacement part.

Top 5 Common Motherboard Failure Signs to Watch

Before you open the case, you need to look, listen, and feel. The motherboard is the spine of the computer; when it’s injured, it usually screams in specific ways.

Visual Inspection: Burn Marks, Bulging Capacitors & Corrosion

Grab a bright flashlight. Seriously. The best diagnostics often happen with the power off and a good light source. I’ve seen boards where a single bulging capacitor was the only clue before a total power shutdown.

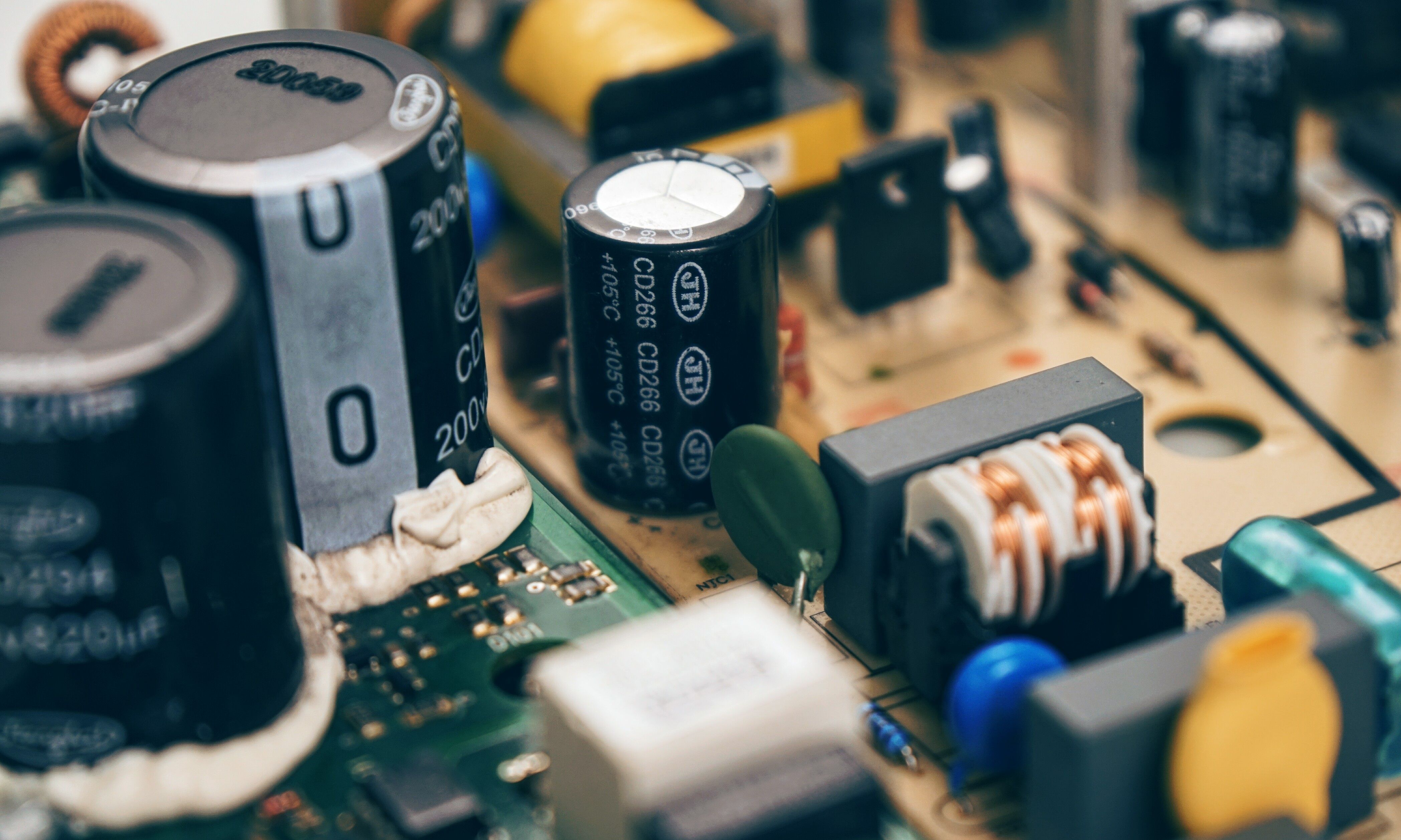

Look around the CPU socket and the power connectors. You’re hunting for capacitor bulging. A healthy capacitor looks like a flat, dark dome. A failing one looks like it’s about to pop, with the top pushed outward or even leaking a dark, oily substance. This is a classic sign of aging or chronic VRM overheating. If you see electrolyte leakage, stop. The board is likely cooked.

Also, smell the area. A burnt plastic or ozone scent is a clear indication of electrical arcing. I’ve found boards where a short circuit caused localized melting of the PCB traces, which is visible as blackened areas. If you’ve ever spilled liquid in the case, check for green or white corrosion near the slots and headers. This is short-circuit motherboard damage that can kill the board over time.

Startup Symptoms: No Display, Beep Codes & Random Restarts

If the visuals look okay, turn it on and pay attention to the "no POST" scenario. Fans spinning but a black screen? That’s a common indicator of a failed communication chain between the board and the CPU or GPU.

Listen for beep codes. If your motherboard has a speaker, it will translate its internal errors into sounds. A single long beep usually means a memory issue, but continuous short beeps often point to the board or CPU. However, modern UEFI boards often skip beeps and rely on on-screen diagnostic lights or a 4-digit POST code displayed on a small LED readout. A code that changes rapidly or gets stuck on a specific number (like 0x00 or 0x20) is a significant data point.

Watch for the "diagnostic loop." This is when the computer boots, shuts down, and restarts in a loop. It’s intermittent instability. It suggests that while the board can start the POST process, something fails halfway through, likely due to a failing voltage rail or a cracked trace that only breaks under thermal expansion.

Hardware Recognition & Peripheral Errors

Have your USB ports stopped working, or your SATA drives gone silent? If multiple peripheral interfaces fail simultaneously—say, your Wi-Fi card is dropped, USB 3.0 ports are dead, and your NVMe drive isn’t detected—it’s highly unlikely that three different components failed at the same time. This points to the motherboard’s controller chips.

Specifically, look for "RAM not detected" scenarios. If you have two sticks of RAM and only one is recognized, it’s usually bad RAM. But if neither is recognized, even when you try different slots, the fault shifts to the memory controller on the motherboard (or the CPU, if it’s an integrated controller, but the board is still the delivery mechanism). Error messages like "0301 - Memory Error" in the BIOS setup screen are your friends here; they tell you exactly where the chain broke.

Step-by-Step Guide to Diagnose a Motherboard Issue

Now that you’ve spotted the symptoms, it’s time to diagnose motherboard issue with precision. We are going to isolate the variable.

The 'Minimum Hardware' Bench Test Method

This is the gold standard for isolation. You want to strip the system down to the bare minimum. I recommend taking the motherboard out of the case entirely and placing it on a non-conductive surface, like a cardboard box (don't place it on the wood desk directly; use the anti-static bag the components came in).

You need only four things:

1. The CPU and its cooler (thermal paste applied properly).
2. One stick of known-good RAM.
3. The 24-pin power connector from your PSU.
4. The CPU power connector (4-pin or 8-pin).

Short the power button pins on the motherboard to turn it on. This removes the variable of a faulty front-panel wiring or a shorted case. If the system still fails to post on the bench, you’ve ruled out case-related shorts. This bench test method has saved me from replacing hundreds of dollars worth of "bad" cases that were actually just loose screws touching the back of the board.

Note: Always discharge static electricity before touching components. I keep a small anti-static wrist strap in my toolkit, but tapping the metal case of a grounded PSU usually suffices for quick tests.

Using a Multimeter to Test Voltage Rails

For the more technical reader, this is where you get concrete data. A dead board might still have power, but a dying one often has unstable rails.

You need a digital multimeter set to DC Volts (20V range). Plug in the 24-pin ATX connector. The black wires are Ground (0V).

• Yellow wires (12V): Should read 11.9V - 12.1V.
• Red wires (5V): Should read 4.95V - 5.05V.
• Orange wires (3.3V): Should read 3.25V - 3.35V.
• Purple wire (5Vsb): This is the standby power. It should be present even when the PC is off, reading roughly 4.75V - 5.25V.

If the 5Vsb is dead, your board won’t power on at all, which looks like a dead board but is often just a blown fuse in the PSU. However, if the main rails fluctuate wildly (e.g., 12V dropping to 11V under load), you may have a failing VRM on the board or a weak power supply. Unstable readings are a strong indicator of VRM overheating or component degradation.

Ruling Out Non-Motherboard Causes (The Cross-Test Protocol)

We often blame the board when the problem is actually the RAM or the CPU. This is where cross-testing comes in.

1. Test the RAM: Use a stick of RAM that you know works in another machine. If the board still doesn’t post with known-good RAM, the board is suspect.
2. Test the CPU: If you have a compatible spare CPU, swap it in. A cracked die on the CPU can stop the board from posting.
3. The CMOS Battery: Believe it or not, a dead CMOS battery can cause weird boot issues. It doesn’t usually kill the board, but it can corrupt the BIOS settings, causing a "no video" loop. Check the CR2032 battery; replace it if it’s older than 3-4 years.

Consider this comparison:

Software & BIOS Diagnostics: Reading the Signals

Sometimes the hardware is fine, but the logic that drives it is broken. This is where we use POST code interpretation and software logs.

Interpreting Error Codes & Event Viewer Logs

If you can actually get into Windows, open the Event Viewer. Look under "Windows Logs" > "System." Search for "Kernel-Power 41." This error code means the system rebooted unexpectedly. If it’s paired with "WHEA-Logger" errors (Hardware Errors), that is a strong signal pointing to the CPU or the motherboard’s memory controller, not the OS.

If you can get to the BIOS screen, look for the POST code on the display (if available) or the diagnostic LEDs. A code stuck at "C0" or "E0" often relates to video or memory initialization. While these codes can be tricky, a changing code indicates the process is moving forward; a static code means the process is stuck. Stuck = hardware failure likely.

BIOS/UEFI Settings & Reset Procedures

Before you call it dead, clear the BIOS/UEFI. A corrupted BIOS flash can act exactly like a dead board.

• Method 1: Locate the "CLR_CMOS" jumper on the board. Move the jumper to the reset position for 10 seconds, then back.
• Method 2: Remove the CMOS battery and power button for 5 minutes. This forces a full reset of the board’s logic state.

In my experience, about 1 in 20 "dead boards" are actually just boards with a corrupted BIOS that refused to post. It’s a free fix that takes 10 minutes. Always check this before you spend a dime on a replacement.

Repair vs. Replace: The Cost-Benefit Decision Matrix

So, you’ve confirmed it. The board is bad. The question is: is my motherboard dying in a way that’s repairable, or is it time to buy new?

When Is It Worth Fixing a Failing Board?

If you found bulging capacitors or a blown fuse, a local repair shop can often fix this for $50-$100. This is microsoldering work. It’s risky, but for a cheap board, it’s better than nothing.

However, if you have short circuit motherboard damage symptoms like physical cracks in the PCB or damage to the CPU socket, repair is rarely worth it. The complexity of the multi-layer board makes it nearly impossible to repair reliably by hand.

• Budget/OEM Boards: If you have an older, generic board, replacing it is almost always cheaper than repairing it. You can buy a new B450 or H170 board for under $80.
• High-End/Gaming Boards: For a $400+ board, a professional repair might make sense if the fault is isolated to a few capacitors or a VRM phase. But if the chipset is dead, the board is trash.

A typical motherboard lasts 5-10 years. If yours is out of warranty and showing multiple failure points, replacement is the sane economic choice. Don’t spend more than $30 fixing a $60 part.

Preventing Future Motherboard Failures

You don’t want to be in this position again. Most board failures are caused by heat and power spikes.

Thermal Management & Power Protection

The VRM (voltage regulator module) is the hottest part of the board, next to the CPU. If your case airflow is terrible, the VRM heats up, and the capacitors around it age faster. This link between overheating and shutting down and VRM life is direct.

• Airflow: Make sure you have at least one intake and one exhaust fan. Don’t block the front of the case.
• Surge Protection: Use a UPS (Uninterruptible Power Supply) or a high-quality surge protector. Power spikes kill boards more often than they kill PSUs.
• Thermal Paste: When you replace a CPU, reapply thermal paste. Dried-out paste causes the CPU to run hot, which dumps that heat directly into the VRM on the board. A cooler CPU means a cooler board.

FAQ

How can I test if my motherboard is bad without replacing it?

The most effective non-invasive test is the Minimum Hardware bench test. Remove the board from the case, connect only the CPU, one stick of known-good RAM, and the power supply. If it posts on the bench but not in the case, you have a case short. If it doesn't post on the bench, cross-test with a known-good CPU and RAM. If it still fails, the board is the isolated variable.

Does a blue screen always mean the motherboard is faulty?

No. In fact, blue screens (BSOD) are more commonly caused by RAM, CPU drivers, or software conflicts. You should suspect the motherboard only if the BSODs are random, occur across different operating systems, or are accompanied by hardware detection errors (like "Memory Management" faults). A single BSOD is almost never a board issue.

Is it worth repairing a motherboard if the fault is in the VRM vs the chipset?

VRM repairs are cheaper and more feasible because they are discrete components (capacitors, chokes) that can be replaced. Chipset or CPU socket damage is usually not worth repairing. The circuitry is dense and multi-layered; the cost of professional repair often exceeds the cost of a new, better board.

What are the physical signs of a dead motherboard?

Look for:

1. Bulging Capacitors: Tops pushed outward.
2. Burnt Smell: Ozone or melted plastic.
3. Blackened Traces: Charring near power connectors.
4. Deformed PCB: The board physically bending or warping due to heat.

Conclusion

It is far more likely that your issue is bad RAM or a failing PSU than a dead motherboard. But when the board is the problem, the signs are specific: bulging caps, no-POST codes, and simultaneous peripheral failure.

The key to peace of mind is systematic diagnosis. Don’t guess. Use the bench test. Check the voltages. Cross-test with known-good parts. Early detection of physical signs like capacitor bulging or VRM overheating can save you from a total system loss. Modern boards are robust, but they are not immortal. Treat them with proper airflow and power protection, and they will serve you for a decade.

What’s the weirdest symptom you’ve seen on a dying board? Share your diagnosis experiences in the comments, or check out our recommended PSU and RAM testing tools below.
